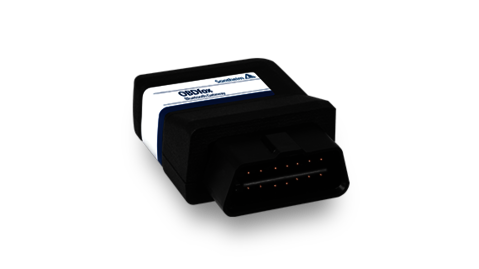

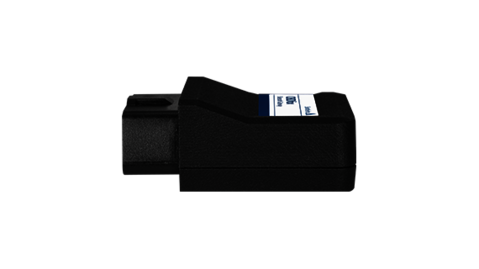

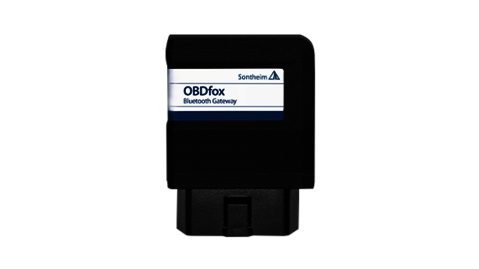

OBDfox

Smart CAN-to-Bluetooth Gate­way with OBD-interface

Request
Product Flyer

Key Features

  • 1× CAN interface acc. to ISO 11898
  • 1× Bluetooth 4.1
  • 1× 3D accerleration sensor (optional)
  • 12 V or 24 V compatible
  • Extremly compact
  • IP20 protection class

Description

Smart CAN-to-Bluetooth gateway
The very compact OBDfox is equipped with one CAN interface according to ISO 11898-2. By means of an OBD con­nec­tion, the VCI can easily be connected to a vehicle and the data can be sent via Bluetooth to a smartphone, tablet or mobile device (Android and IOs compatible). An optional 3D accelerometer enables notification in case of unauthorised use of the machine (anti-theft pro­tec­tion) or pro­vides useful information for repair and main­te­nance work, for example after very hard vehicle vibration.

Integrated MT-API interface
The integrated API allows a fast and easy realization of OEM applications. The OEM can thus implement his own CAN plug-and-play func­tio­nal­i­ties for his vehicle efficiently and quickly. With OBDfox it is possible to check the con­nec­tiv­ity on the CAN bus or to perform live mo­ni­toring of the machine data. In ad­di­tion, the device provides a simple over­view of relevant operating and service data and can execute simple diagnostic app­li­ca­tions.

Technical Data

CPU32-bit microcontroller, Cortex-M4/M0
Memory2 MB SPI-Flash
CAN1× CAN interface acc. to ISO 11898-2 (2× CAN optional)
Bluetooth4.1 + LE, BR/EDR
3D Acceleration sensor1× optional with ±2g, ±4g, ±8g
Status2× LED
Dimensions (l×w×h)61 mm × 45 mm × 22 mm
Protection classificationIP20
Operating temperature0°C up to +60°C
Storage temperature–20°C up to +85°C
Power supply12 V or 24 V compatible
