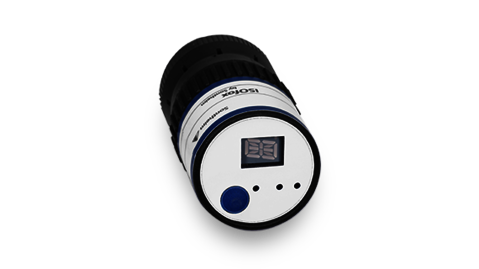

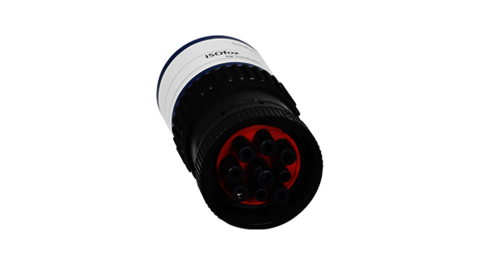

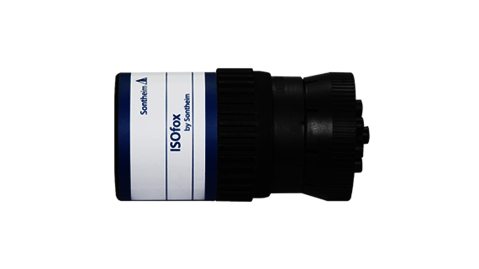

ISOfox

Smart CAN-to-Bluetooth Gate­way with ISOBUS interface

Request
Product Flyer

Key Features

  • 1× CAN interface acc. to ISO 11898
  • 1× ISOBUS acc. to ISO 11783
  • 1× Bluetooth 4.1
  • 1× WLAN, IEEE 802.11 b/g/n (optional)
  • 12 V or 24 V compatible
  • IP20 protection class

Description

Smart ISOBUS Gateway
The very compact ISOfox is equipped with one ISOBUS interface according to ISO 11783 and one CAN interface according to ISO 11898-2. You can simply connect the device to the ISOBUS and the data is sent via Bluetooth or WLAN (optional) to a smartphone, tablet or mobile device. The VCI is com­pat­ible with any ISOBUS tractor or implement.

Integrated MT-API interface
The integrated API of ISOfox allows a quick and easy realization of OEM applications. The OEM can thus implement his own ISOBUS plug-and-play functionalities for his vehicle efficiently and quickly. With ISOfox it is pos­sible to check the connectivity on the ISOBUS or to perform live monitoring of the ma­chine data. In addition, the device provides a simple overview of relevant operating and service data and can execute simple dia­gnos­tic applications.

Technical Data

CPU32-bit microcontroller, Cortex-M4/M0
RAM32 MB SDRAM
Memory4 GB up to 64 GB eMMC NAND Flash
CAN1× CAN interface acc. to ISO 11898-2
ISOBUS1× ISOBUS interface acc. to ISO 11783
Bluetooth4.1 + LE, BR/EDR
WLAN (optional)1× IEEE 802.11 b/g/n
WPA/WPA2, WEP, TLS/SSL, HTTPs, TCP, UDP, DHCP, DNS
Status3× LED, 14-segment display
Dimensions (l×w×h)74 mm × 40 mm × 40 mm
Operating temperature0°C up to +60°C
Storage temperature–20°C up to +85°C
Protection classificationIP20
Power supply12 V or 24 V compatible
