Panel-PC 8000

Optimum machine control and oper­ation. Two PC104+ slots for ad­dit­io­nal in­ter­face cards make the device a real all-rounder

Key Features

  • Robust terminal for the control of machines
  • Powerful and energy-saving Intel Atom processor
  • Expansion slots for individual adaption
  • Mounting arm attachment for flexible placement

Description

Equipment and display
The 1.1 GHz Atom processor ensures low en­er­gy con­sum­p­tion. There are 512 MB RAM avail­a­ble as well as an inserted SD card with 2 GB for app­li­ca­tions. The resistive touch screen and the mem­brane key­board allow data to be vi­su­a­lized and software com­po­nents to be op­e­rated. The Panel-PC 8000 is therefore ideally suited as HMI for machine control.

Interfaces
The terminal provides two CAN interfaces for con­nec­tion to field­bus net­works, which are im­ple­men­ted via an M12 socket and an M12 plug. Ex­ter­nal peripherals such as mouse, key­board or memory sticks can be easily con­nec­ted via two USB 2.0 inter­faces. The third M12 con­nec­tor is used as Ethernet port. With a bandwidth of 100 Mbit/s, it can be used for connecting to the network or for direct data transfer.



Flexibility through PCI slots
Two expansion slots allow the integration of further interfaces. As with the IPC-4, various var­i­ants are available for this purpose: CAN, FireWire, digital and analog inputs and out­puts, Profibus. In addition, many other functions can be integrated according to customer specifications. The Panel-PC 8000 can be used as a standard HMI or upgraded to a specific control solution.

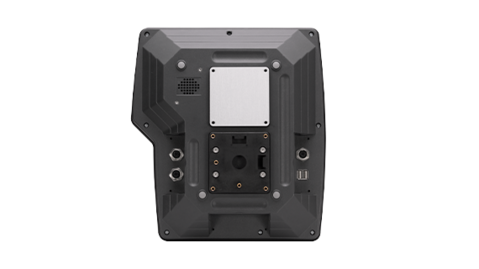

Robust design
HMIs in production plants can sometimes be exposed to temperature fluctuations, spray water and mechanical influences. Therefore, when designing the Panel-PC, great impor­tance was attached to a robust con­struc­tion. The connectors prevent water from pen­e­tra­ting into the interior of the housing by sealing it to the inside. In addition, the mem­brane key­board with large buttons is also suitable for oper­a­tion with gloves. A support arm mount also allows the device to be in­stal­led outside the switch cabinet.

Technical Data

Hardware
CPUIntel Atom CPU 1,1 GHz
RAM512 MB
MemoryInternal SSD ATA SolidStateDrive-Flash, 512 MB
Internal SD slot with integrated 2 GB SD card
Other SD cards available upon enquiry
CAN2× CAN interface via 2× M12 connectors (2× female)
USB2× USB 2.0, Type A
Ethernet1× Ethernet, 100 Mbit/s, M12
Supported CAN interfacesCANUSB, CANfox®, others upon enquiry
Display7"
Resolution800×480, 262 colors
TouchResistive
SurfaceAnti glare and wide view
Buttons/Front foil19 buttons incl. keypad and navigation
LEDs2 LEDs for monitoring current supply errors
Dimensions (l×w×h)308 mm × 283 mm × 80 mm
Storage temperature–10°C up to +55°C
Operating temperature0°C up to +45°C
Weight3.0 kg
HousingPlastic housing with support arm mount
Rel. Humidity5 % – 95 % non-condensing
Protection classIP65
Supply voltage24 V DC ±20 % via CAN-M12 interface
